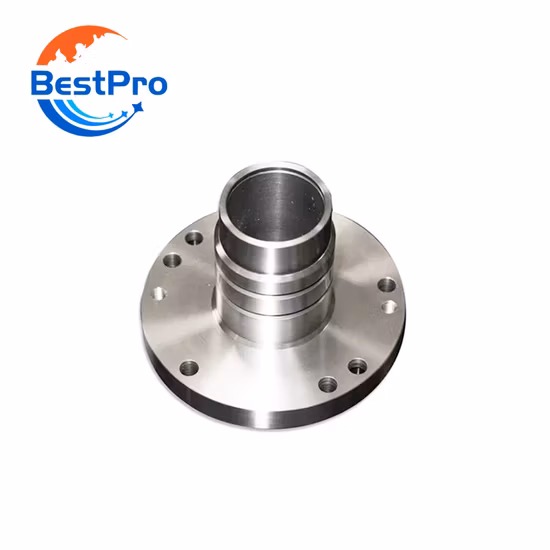

OEM Service Precision Hardware Anodizing/Coating Aluminum/Alloy/Steel/Brass Copper Metal CNC Milling Turning Lathe Spare Machinery Machined Machining Parts
Basic Info.
| Model NO. | E20109D |
| Type | Broaching, Etching/Chemical Machining, Milling |
| Advantage | One Stop Service. Machining-Assembly |
| Micro Machining or Not | Micro Machining |
| Finish | Customized |
| OEM & ODM | Welcome |
| Place of Origin | Suzhou, China |
| Model Number | CNC Milling Parts |
| Material Capabilities | Aluminum, Brass, Bronze, Copper, Hardened Metals |
| Roughness | Ra0.2 - Ra3.2 / Can Be Customized as Well |
| Tolerance | +/- 0.005 - 0.01mm |
| Mass Production Lead Time | 14-21days |
| Sample Lead Time | 5-7days |
| Service | Customized CNC Machining Parts with Most Materials |
| Process | CNC Miling |
| Part Name | High Precision CNC Machining Part |
| Transport Package | PE Foam + Carton/Wooden Case |
| Specification | Custom size |
| Trademark | OEM/ODM |
| Origin | Suzhou, China |
| HS Code | 84799090 |
| Production Capacity | 15000PCS/Month |
Product Description
| Part Details (CNC Turning) | |
| Metal Materia: | Titanium, Aluminum, Stainless Steel, Copper/Brass, Iron, any types of alloy |
| Machine: | 3 / 4 /5 axis CNC Machining Center |
| Roughness: | Ra0.2-Ra3.2 |
| Tolerance: | 0.005~0.05mm or refer to drawings strictly |
| Main Process: | Turning / Milling |
| Surface Finishing: | Sandblasting, Polishing, Anodize, Zinc, Nickel, Chrome, Plating, Heat treatment |
| Application: | Automation industry, Automobile industry, Medical device industry, Electronics, Home appliance, Aerospace industry, Oil&Gas exploration... |
| Packing Details: | EPE foam/ Anti-Rust Paper/ Stretch Film/ Plastic bag +Carton |
| Delivery Time: | Prototype sample 5-7days, Mass production: 14-21days |
| Quality Control System: | Incoming inspection, process inspection, finished product inspection, delivery inspection |
| We Only Support Custom CNC Machining Parts Order (Non- Standard Parts) | |
| Our Service: | Customized CNC machining parts of most materials |
| Price: | According to your design drawings |
| Payment: | T/T, Credit Card, LC, Paypal, All Trade Assurance |
| Tolerance: | +/- 0.005 - 0.01mmHigh Quality Customized Milling Service Parts Professional Aluminium Cnc Milling Parts |
| Surface Roughness: | Ra0.2 - Ra3.2 / can be customized as well |
| Packaging: | EPE foam/ Anti-Rust Paper/ Stretch Film/ Plastic bag + Carton |
| Samples Time: | Around 5 working daysHigh Quality Customized Milling Service Parts Professional Aluminium Cnc Milling Parts |
| Samples Shippment: | DHL, FEDEX, UPS, etc.High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling Parts |
| Other Benefits: | The following sample picture only for your ref. If you don't have a design drawing, our engineer team can offer design drawings based on your ideas, or depend on your design to offer improved ideas as well. |
| Warranty: | We borne 100% responsibility for quality problems & Fast delivery |
Surface Treatment
Quality Control System
| Quality Management Standards | |
| 1. Inspection Standard: | GB/T 1804-2000(Linear and angular tolerances are not noted), GB/T 1184-1996(No tolerance for shape and position), HB5800-1999(No dimensional tolerance stated), GB/T2828.1-2012(AQL) |
| 2. Quality Control System: | Incoming inspection, process inspection, finished product inspection, delivery inspection |
| 3. 5M1E: | Man, Machine, Material, Method, Measurement; Environment) |
| 4. 5W2H: | Who, What, When, Where, Why; How Often? How Many? |
| 5. 5 Tools for QM: | APQP(Advanced Product Quality Planning), PPAP(Production Part Approval Process), FMEA(Failure Mode and Effects Analysis), MSA(measurement systems analysis), SPC(Statistical process control) |
| 6. PDCA: | Plan, Do, Check, ActionHigh Quality Customized Milling Service Parts Professional Aluminium Cnc Milling Parts |
| 7. Measuring Room Temperature and Humidity Control Range: | 20±2ºC,Humidity: 25~75%RHigh Quality Customized Milling Service Parts Professional Aluminium Cnc Milling Parts |
Our Advantages
| Quickly Response | Quoting within 12-24hours |
| Sample 5-7days | |
| Full Ranges of Fabrication Service | Include CNC Turning&Milling, Sheet Metal parts, Die-casting parts, Surface Finishing |
| Quality Control | Inspection Standard: GB/T 1804-2000, GB/T 1184-1996(No tolerance for shape and position),HB5800-1999(No dimensional tolerance stated), GB/T2828.1-2012(AQL) |
Production Process
Application
Company Profile
Our Manufacturing Capability
Exhibition
FAQ
Q1: What materials do you machine?
A: We machine aluminum, brass, copper, carbon steel, stainless steel, alloy or plastics like: Acetal, CPVC, Delrin®, Duratron, PAI®, ETFE, FEP, Fluorosint®, Halar®, Kynar®, Neoflon®, Nylatron®, Nylon, PCTFE, Peek, Polyimide, PPS, Polyurethane, PVC, Rulon®, Ryton®, Semitron®, Techtron®, Tefzel®, Torlon®, Turcite®, UHMW, Ultem®, Vespel®, Kel-F®High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ2: What kind of machines do you have?
A: We have vertical machining centers and horizontal turning centers with spindles used for tight-tolerances milling and turning, such as tool & die work.High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ3: I need a CNC machining quote; what kind of machining services do you offer?
A: We do the following services: milling, turning, drilling, threading, tapping, part design, prototyping, reverse engineering, low volume or one-off part machine runs, modification of an existing part, material sourcing assistance, limited material warehousing and parts dispatching. To receive a quote, just send a STEP/PDF file via email to usHigh Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ4: What are your hours of operation?
A: We are available Monday through Friday between 8:30 am and 5:30 pm EST. You may always email your CAD (computer-aided design) files along with the necessary information to us High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ5: Which industries use your CNC machine shop services?
A: We serve the Medical device industry, Automobile part industry, Aerospace industry, Automotive industry, Smart Robot industry, Agricultural equipment industry, Food machinery industry… we are open to extend our machine shop assistance to more industries.High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ6: What type of files do you accept?We accept different computer drawing file formats:-STEP (.step) or STP (.stp) formats are ok, but are inferior to the format types above-IGES (.iges) and IGS (.igs) are ok but inferior to the formats above-For Autocad users, DXF/DWG files will work fineHigh Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ7: What is your lead time?
A: This is a situation-specific topic to be discussed once we have a clear understanding of what needs to be done. We work on a first come first serve basis therefore current work load will factor in. After the receipt of a purchase order in writing, file completed, and materials are available, we could say Five business days to Four weeks lead time. This will be subject to the complexity of the parts and quantities of the parts ordered.High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ8: Do you accept small quantity jobs?
A: We are geared toward production but we gladly accept small quantities. You may order one part or thousands. We do view each order individually therefore larger orders will automatically receive a price reduction. We do have a minimum dollar amount per order.High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ9: Why do you need a CAD drawing to cut a simple rectangle, circle or letters?
A: Even the simplest of shapes require a CAD drawing. That CAD drawing will be imported into CAM (computer-aided manufacturing) software. From that drawing, we would utilize the geometry to apply toolpath to all entities intended to be machined. We also want to avoid the liability of cutting something that wasn't approved.A CNC machine is a computer-controlled cutting machine used in the manufacturing world. It involves the use of computers to control the machine tools via G-code. Therefore, only a CAD drawing could be used in the CAM software that both gives us a visual representation and controls the machine.High Quality Customized Milling Service Parts Professional Aluminium Cnc Milling PartsQ10: Why do you need to design and machine a workholding component to machine my parts?
A: CNC machines move at a very high rate of speed combined with a massive amount of torque. Maintaining the desired fixed position throughout the force of cutting ensures repeatable results. If the part moves while being machined, the high tolerances of the part will be compromised. Therefore machining a "jig" or workholding fixture may be required in order to complete the part.
